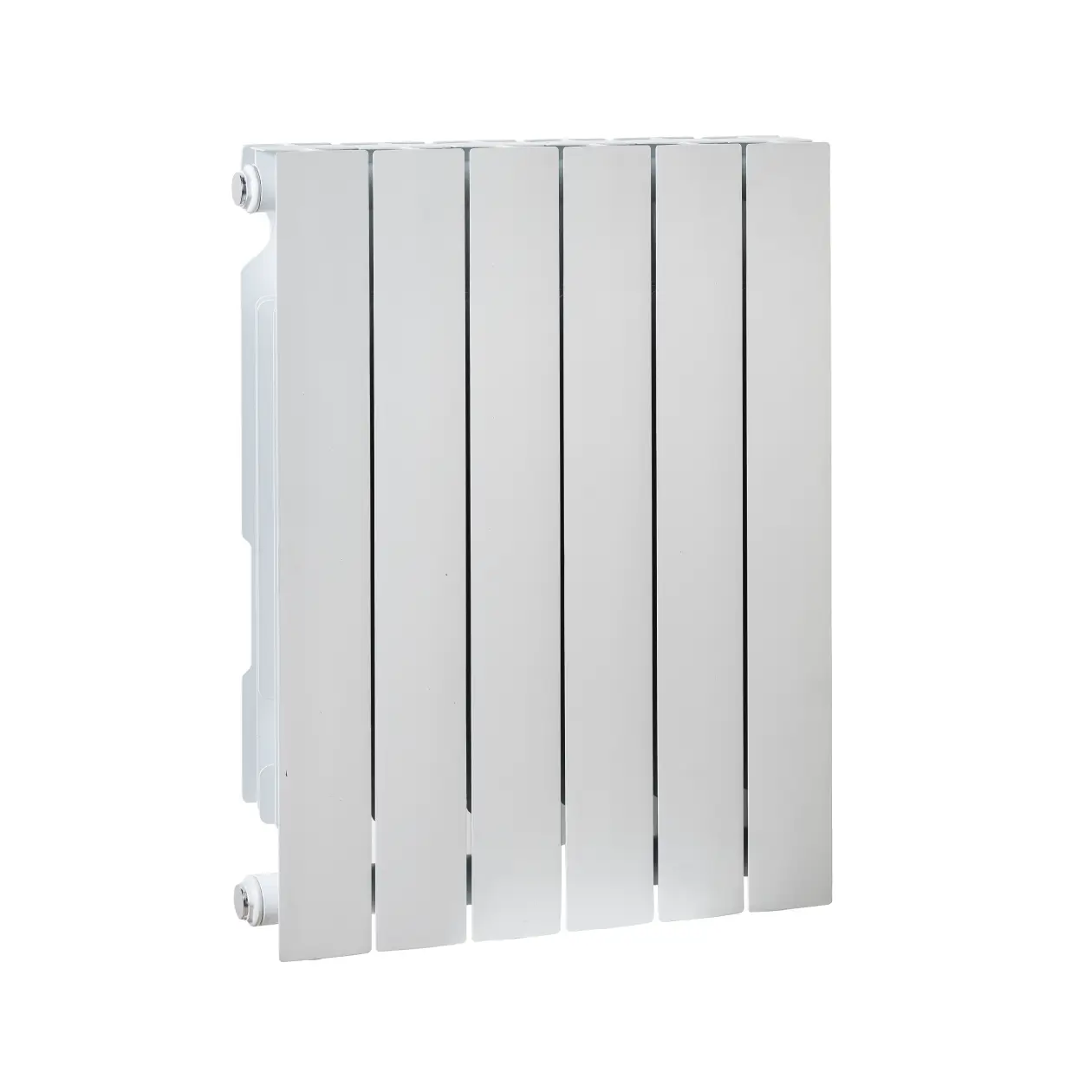

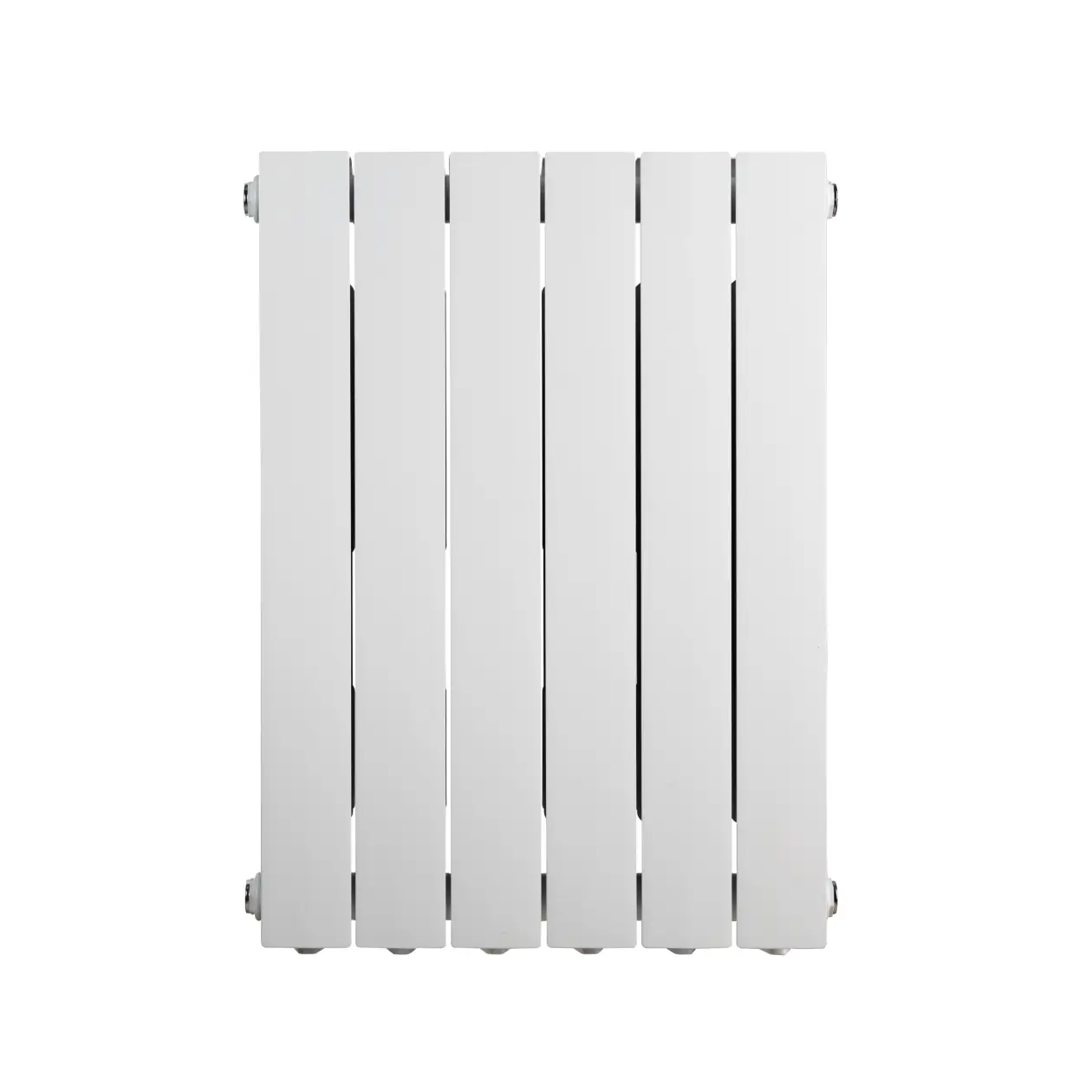

Minimalist and modern design, made with recycled and recyclable aluminum. Modular in width, it ensures high performance, low consumption, and heating times reduced by 38% compared to steel. Remains unchanged over time thanks to the painting process.
PLUS EVO
Contemporary elegance
20 bar
Operating pressure
120 °C
Maximum operating temperature
10 year guarantee
Low Temperature
100% recycled packaging
100% recycled and recyclable aluminium
Hydronic Radiator
All models produced by Radiatori 2000 S.p.A are approved according to the regulations of the various countries in which they are used.
Accessories
| Code | Description | Category | |
|---|---|---|---|
|
215.001
|
Chrome set with thermostatic valve and angled lockshield with connection for copper, multilayeror steel pipes, chrome finish with plastic knob in chrome finish.
|
Valves and lockshields |
|
|
215.002
|
Chrome set with thermostatic valve and angled lockshield with connection for copper, multilayeror steel pipes, chrome finish with plastic knob in black finish.
|
Valves and lockshields |
|
|
215.003
|
Chrome set with thermostatic valve and angled lockshield with connection for copper, multilayeror steel pipes, chrome finish with plastic knob in white finish.
|
Valves and lockshields |
|
215.004
|
Basic set with thermostatic valve and angled lockshield with connection for copper, multilayeror steel pipe, nickel finish with chrome-plated plastic knob.
|
Valves and lockshields |
|
|
215.005
|
Basic set with thermostatic valve and angled lockshield with connection for copper, multilayeror steel pipe, nickel finish with black-plated plastic knob.
|
Valves and lockshields |
|
|
215.006
|
Basic set with thermostatic valve and angled lockshield connection for copper, multilayer orsteel pipe, nickel finish with white-plated plastic knob.
|
Valves and lockshields |
|
106.103
|
Chrome thermostatic angled valve, for dual-pipe systems. Valve for copper, multilayer or steelpipes.
|
Valves and lockshields |
|
102.103
|
Chrome angle angled lockshield for dual-pipe systems. Valve for copper, multilayer or steelpipes.
|
Valves and lockshields |
|
112.311
|
Thermostatic valve/lockshield set, straight type, complete with sensor, fitting, anddiaphragm, for copper, multilayer or steel pipes with 35 mm inner diameter, for single-pipesystems. Chrome finish.
|
Valves and lockshields |
|
103.301
|
Thermostatic head for water radiators with adjustment ring where required. Chrome finish.
|
Valves and lockshields |
|
036.012
|
Kit of 4 reductions, seal gaskets, cap and vent 1/2” RAL9016 with brackets.
|
Reduction kits |
|
|
036.034
|
Kit of 4 reductions, seal gaskets, cap and vent 3/4” RAL9016 with brackets.
|
Reduction kits |
|
|
036.038
|
Kit of 4 reductions, seal gaskets, cap and vent 3/8” RAL9016 with brackets.
|
Reduction kits |
|
037.012
|
Kit of 4 reductions, seal gaskets, cap and vent 1/2” RAL9016.
|
Reduction kits |
|
|
037.034
|
Kit of 4 reductions, seal gaskets, cap and vent 3/4” RAL9016.
|
Reduction kits |
|
|
037.038
|
Kit of 4 reductions, seal gaskets, cap and vent 3/8” RAL9016.
|
Reduction kits |
|
041.012
|
Reduction 1x1/2 right + gasket per piece.
|
Reduction kits |
|
|
042.012
|
Reduction 1x1/2" left + gasket per piece.
|
Reduction kits |
|
|
041.034
|
Reduction 1x3/4" right + gasket per piece.
|
Reduction kits |
|
|
042.034
|
Reduction 1x3/4" left + gasket per piece.
|
Reduction kits |
|
|
041.038
|
Reduction 1x3/8" right + gasket per piece.
|
Reduction kits |
|
|
042.038
|
Reduction 1x3/8" left + gasket per piece.
|
Reduction kits |
|
00815
|
DESIGN KIT composed of: 2 right caps + 2 left design caps + 1 round cap ½ right complete witho-ring + vent (brackets not included).
|
Reduction kits | |
|
00814
|
Nipple 1" (1 piece).
|
Nipples - Plugs - Gaskets - Diaphragm |
|
00806
|
½” right plug complete with o-ring.
|
Nipples - Plugs - Gaskets - Diaphragm | |
|
00089
|
Diverter 1” (cad.).
|
Nipples - Plugs - Gaskets - Diaphragm |
|
00817
|
Silicon Gaskets for design plugs (1 pcs.).
|
Nipples - Plugs - Gaskets - Diaphragm |
|
|
00816
|
White gaskets for nipples (1 pcs.).
|
Nipples - Plugs - Gaskets - Diaphragm |
|
206.12.01
|
Fittings for iron pipe 1/2”, chrome finish.
|
Fittings |
|
|
206.38.01
|
Fittings for iron pipe 3/8”, chrome finish.
|
Fittings |
|
207.15.01
|
Fittings for multilayer pipe, Ø 10.5/11-15 mm, chrome finish.
|
Fittings |
|
208.16.01
|
Fittings for copper pipe, Ø 16 mm, chrome finish.
|
Fittings |
|
|
207.16.11
|
Fittings for multilayer pipe, Ø 16x2 mm, chrome finish.
|
Fittings |
|
|
207.17.01
|
Fittings for multilayer pipe, Ø 12.5/13-17 mm, chrome finish.
|
Fittings |
|
|
207.18.01
|
Fittings for multilayer pipe, Ø 12.5/13-18 mm, chrome finish.
|
Fittings |
|
|
207.18.11
|
Fittings for multilayer pipe, Ø 13.5/14-18 mm, chrome finish.
|
Fittings |
|
|
208.10.01
|
Fittings for copper pipe, Ø 10 mm, chrome finish.
|
Fittings |
|
|
208.12.01
|
Fittings for copper pipe, Ø 12 mm, chrome finish.
|
Fittings |
|
|
208.14.01
|
Fittings for copper pipe, Ø 14 mm, chrome finish.
|
Fittings |
|
|
208.15.01
|
Fittings for copper pipe, Ø 15 mm, chrome finish.
|
Fittings |
|
|
207.16.01
|
Fittings for multilayer pipe, Ø 16x2,25 mm, chrome finish.
|
Fittings |
|
|
208.18.01
|
Fittings for copper pipe, Ø 18 mm, chrome finish.
|
Fittings |
|
046.001
|
Outer diameter 50 mm, kit for pipe Ø 10, 12, 14, 15, 16 mm.
|
Pipe cover kit |
|
|
046.002
|
Outer diameter 50 mm, kit for pipe Ø 18, 20 mm.
|
Pipe cover kit |
|
209.10.02
|
Pair of plastic chrome-plated pipe cover rosettes. Outer diameter 41 mm, inner diameter 1/2”.
|
Pipe cover kit |
|
|
209.12.01
|
Pair of plastic chrome-plated pipe cover rosettes. Outer diameter 41 mm, inner diameter 10 mm.
|
Pipe cover kit |
|
|
209.12.02
|
Pair of plastic chrome-plated pipe cover rosettes. Outer diameter 41 mm, inner diameter 12 mm.
|
Pipe cover kit |
|
|
209.14.02
|
Pair of plastic chrome-plated pipe cover rosettes. Outer diameter 41 mm, inner diameter 14 mm.
|
Pipe cover kit |
|
|
209.15.02
|
Pair of plastic chrome-plated pipe cover rosettes. Outer diameter 41 mm, inner diameter 15 mm.
|
Pipe cover kit |
|
|
209.16.02
|
Pair of plastic chrome-plated pipe cover rosettes. Outer diameter 41 mm, inner diameter 16 mm.
|
Pipe cover kit |
|
|
209.18.02
|
Pair of plastic chrome-plated pipe cover rosettes. Outer diameter 41 mm, inner diameter 18 mm.
|
Pipe cover kit |
|
035.003
|
Radiator mounting kit with 3 adjustable brackets.
|
Brackets - Shelves |
|
|
035.002
|
Radiator mounting kit with 2 adjustable brackets.
|
Brackets - Shelves |
|
040.170
|
Pair of brackets RAL 9016 gloss (measures: 7x170mm).
The pair of brackets RAL 9016 gloss can be requested with finishes from the catalogue (with anadditional charge).
|
Brackets - Shelves |
|

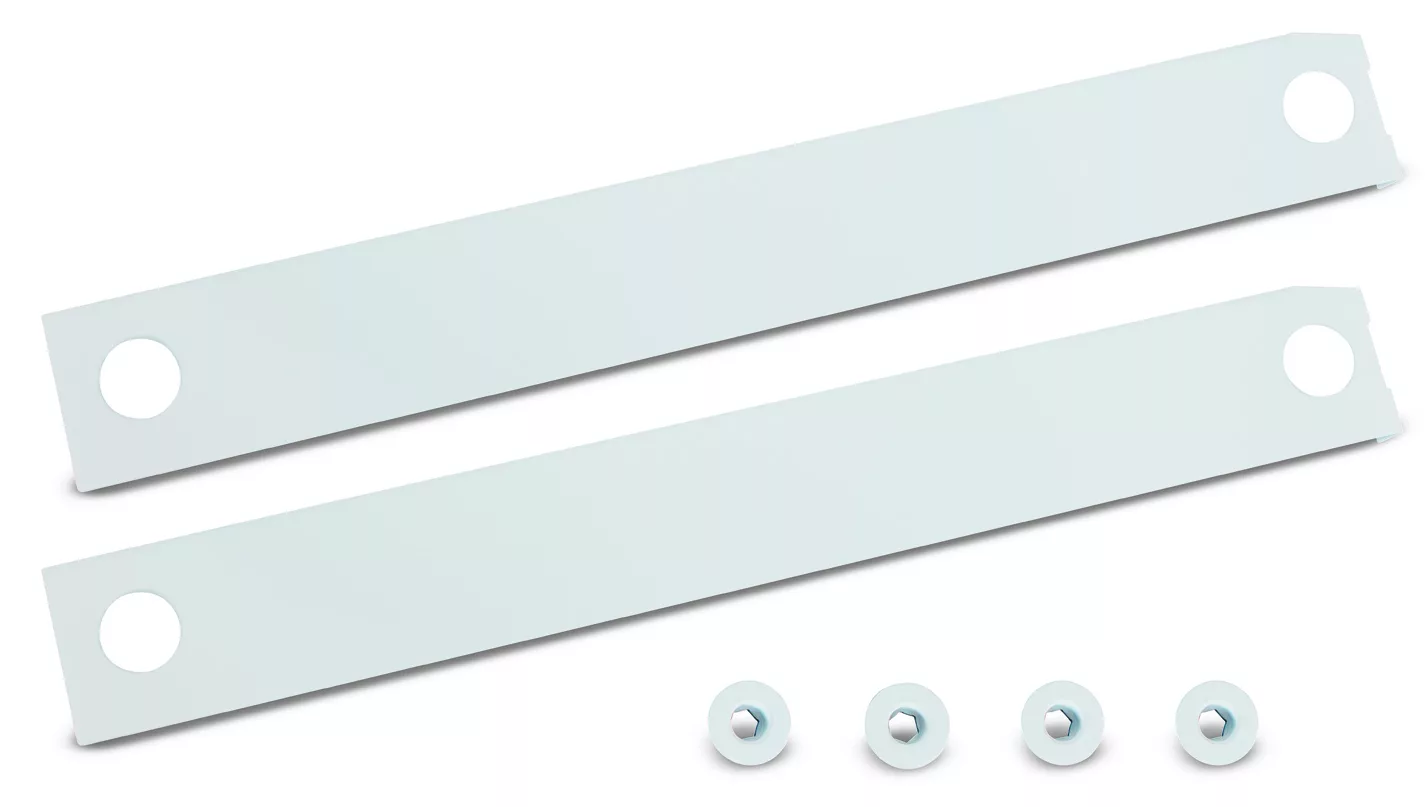

00374
|
PLUS EVO design side panel 350 mm RAL 9016 glossy DX.
|
Sides |
|
|
00375
|
PLUS EVO design side panel 350 mm RAL 9016 glossy SX.
|
Sides |
|
|
00436
|
PLUS EVO design side panel 500 mm RAL 9016 glossy DX.
|
Sides |
|
|
00437
|
PLUS EVO design side panel 500 mm RAL 9016 glossy SX.
|
Sides |
|
|
00425
|
PLUS EVO design side panel 600 mm RAL 9016 glossy DX.
|
Sides |
|
|
00424
|
PLUS EVO design side panel 600 mm RAL 9016 glossy SX.
|
Sides |
|
|
00445
|
PLUS EVO design side panel 700 mm RAL 9016 glossy DX.
|
Sides |
|
|
00446
|
PLUS EVO design side panel 700 mm RAL 9016 glossy SX.
|
Sides |
|
|
00447
|
PLUS EVO design side panel 800 mm RAL 9016 glossy DX.
|
Sides |
|
|
00448
|
PLUS EVO design side panel 800 mm RAL 9016 glossy SX.
|
Sides |
|
00811
|
Plastic Free-standing base for die-cast radiators in white finish (1 pcs.)
|
Other accessories |
|
000940
|
Universal plastic key for caps and reducers.
|
Other accessories | |
|
00930.01
|
500 mm nipple key.
|
Other accessories |
|
|
00930.02
|
800 mm nipple key.
|
Other accessories |
|
|
00930.03
|
1000 mm nipple key.
|
Other accessories |
|
--
|
RAL 9016 Glossy spray can.
|
Other accessories |
